Sale!

₹37,000.00

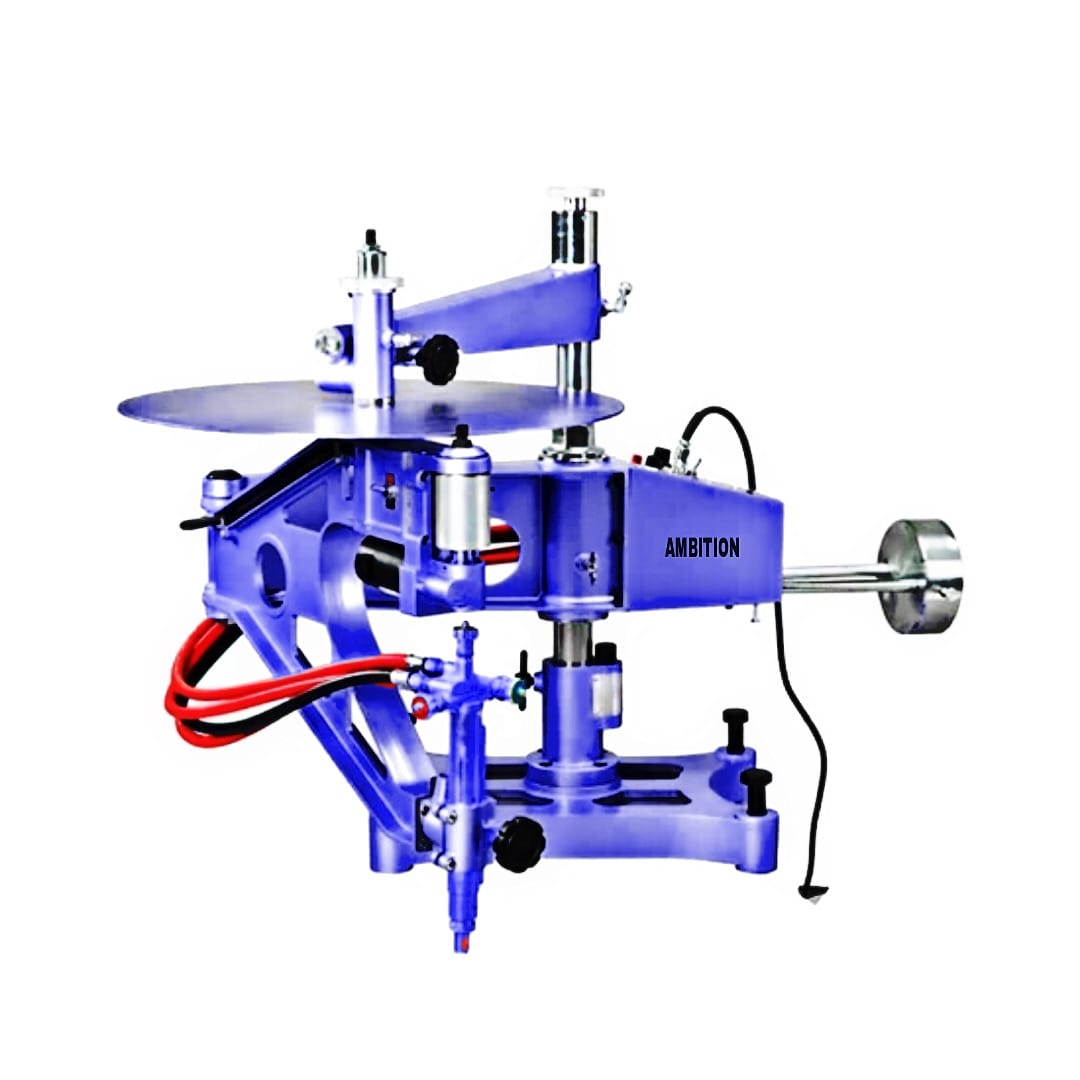

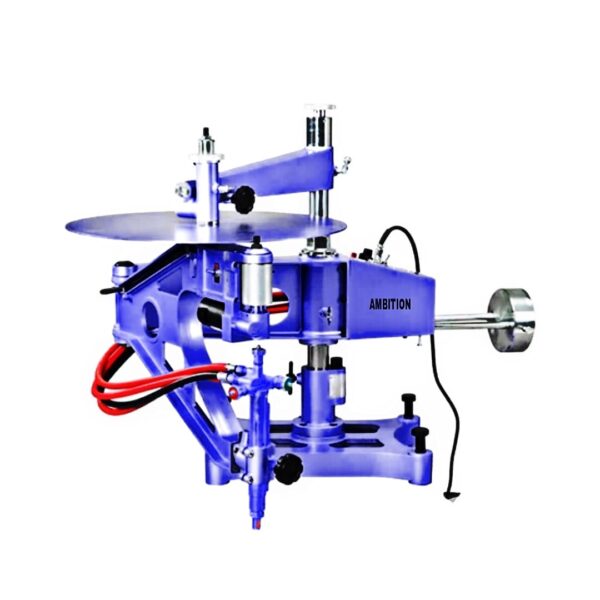

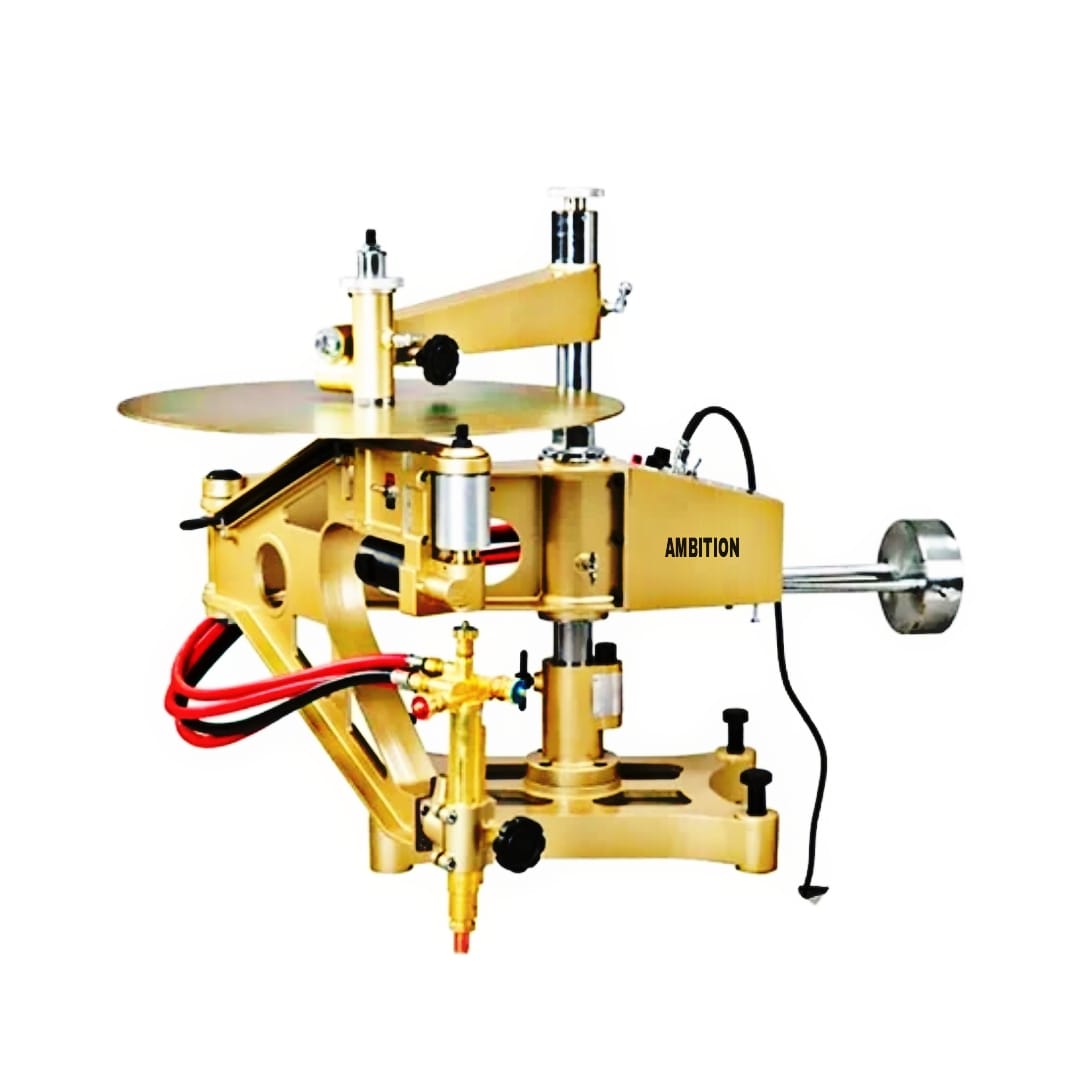

According to the sample plate, various kinds of Spare parts & graphics can be cut, the cutting surface quality is good, the precision is high, and it is suitable for mass production of the same shape cutting parts.

Features

➢ The main body is made of aluminum by die-casting minutely.
➢ it can uniformly adjust the speed within the specified range without changing the performance of the motor, and the speed control is also stable.
➢ With a small control voltage, the motor speed can be directly controlled, and its control energy loss is small.
➢ Using adopt SCR control adjusts speed , moving steadily.
➢ Especially applicable for many un-regular and same centre of internal & external shape Parts with well smooth & fine surface.
Full 360 degrees rotation for larger circles
➢ It can cut a variety of shape clockwise & anti-clockwise, according to the gauge model template .
➢ Low cutting production cost with large cutting range.
➢ High productivity can lead to higher profits.
Catalog

https://www.ambitionweld.com/wp-content/uploads/2023/03/JGC-1100.pdf
PARAMETER JGC-1100
Input voltage AC 220 V + 15%
Frequency 50/60 Hz
Phase Single
Max. size of cutting rectangular 500*950 mm
Circle cutting dia 20-650 mm
Cutting thickness 3-150 mm
Max. size of cutting square 650*650 mm
Cutting length 1250 mm
Dia of standard megnatic wheel 10 mm
Cutting Speed 50-750 mm/min
Cutting precision Ellipse < 1.5 mm,Rectangle/ square +1 mm/650mm
Motor DC Servo motor , 24W , 110V , 0.5A , 3600-4600 RPM
Torch injector type vertical movement (rack & pinion)
Weight 58 Kg
Dimensions 1,190 x 335 x 800mm
