Sale!

₹38,000.00

According to the sample plate, various kinds of Spare parts & graphics can be cut, the cutting surface quality is good, the precision is high, and it is suitable for mass production of the same shape cutting parts.

10 in stock

Features

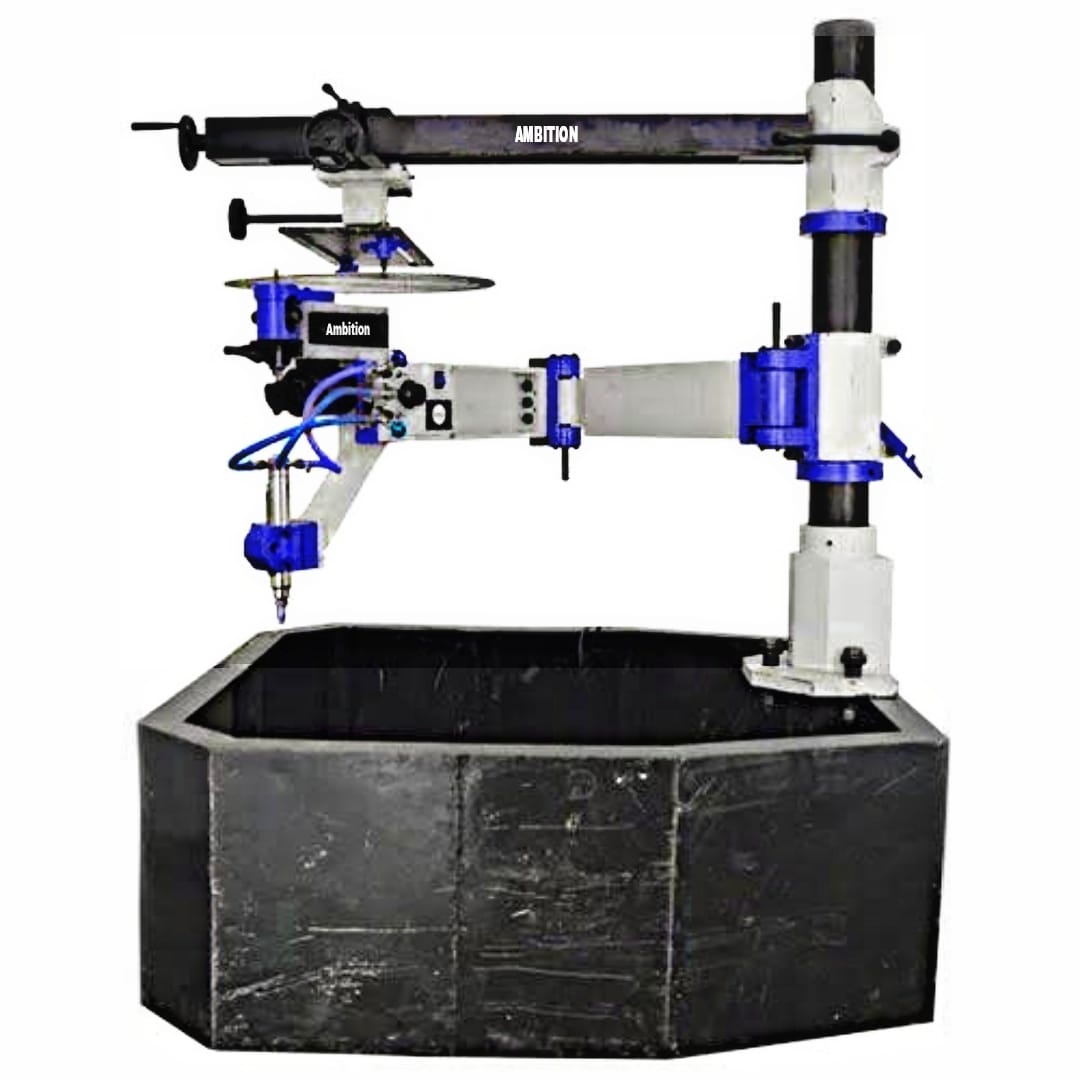

➢ Heavy duty piller type Profile Shape Cutting Machine is high efficiency cutting tool which can easy to cut many different shapes by gauge modelling.
➢ The main body is made of aluminum by die-casting minutely.
➢ it can uniformly adjust the speed within the specified range without changing the performance of the motor, and the speed control is also stable.
With a small control voltage, the motor speed can be directly controlled, and its control energy loss is small.
➢ Using adopt SCR control adjusts speed , moving steadily.
➢ Especially applicable for many un-regular and same centre of internal & external shape Parts with well smooth & fine surface.
Full 360 degrees rotation for larger circles
➢ It can cut a variety of shape clockwise & anti-clockwise, according to the gauge model template .
➢ Low cutting production cost with large cutting range.
➢ High concentric precision(IT-16 Level) in cutting with well smooth & fine surface.
Catalog

https://www.ambitionweld.com/wp-content/uploads/2023/03/JGC-2000P.pdf
PARAMETER JGC-2000P
Input voltage AC 220/250 V + 15% /50-60Hz
Max. size of cutting rectangular 550*1750 mm
Circle cutting dia 20-2050 mm
Cutting thickness 5-300 mm
Max. size of cutting square 1570*1570 mm
Cutting length 2300 mm (2 mtr)
Dia of standard megnatic wheel 12 mm
Cutting Speed 50-750 mm/min
Cutting precision Ellipse < 1.5 mm,Rectangle/ square +1 mm/650mm
Motor DC Servo motor , 24W , 110V , 0.5A , 3600-4600 RPM
Torch injector type vertical movement (rack & pinion)
Weight 450 Kg
Dimensions 1600*1600*2000 mm
