Sale!

₹58,000.00

Capacitor discharge technology reduces the weight by 50 % compared to welding units with inverter and transformer technology.
Minimized energy consumption – energy needed is reduced by 50 % compared to standard welding units with another technology.

Specifically designed for thinner sheets of about 2 mm or minimum gauge (swg)
“Energy package for every type of studs.”

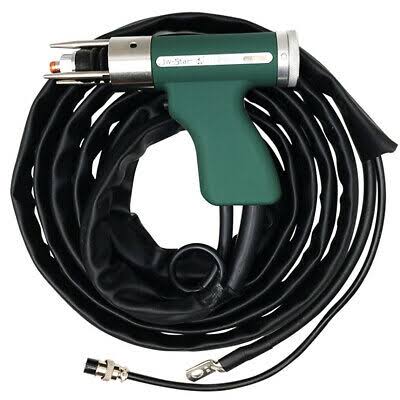

Stud Torch:
Rugged casing with ergonomic grip.
High-performance stud welding gun for tip ignition process of gap welding.
no setting required for lift and spring pressure
Universal design for use on flat surfaces.
Easy handling.

Features

➢ The process minimize the depth of penetration into parent metal surface & shear connector.
➢ Elimination of different operation such as Drilling , Punching , Threading , Gluing , Riveting or any type of Screwing etc.
➢ No Welding marks on reverse side of coated or high alloyed plates
➢ No additional material required I.e flux , electrode , filler wire , inert gas etc.
➢ Very short welding time (1 ms to 1500 ms), fast & high quality weld
➢ Repeatable energy independent of line voltage fluctuations
➢ Fast energy release, suitable for welding highly conductive metals with Small heat affected zones
➢ No re-working necessary on other side of weld
➢ Fast & easy method of welding , handling, leads to high productivity.
Catalog

https://www.ambitionweld.com/wp-content/uploads/2023/04/jcd-10.pdf

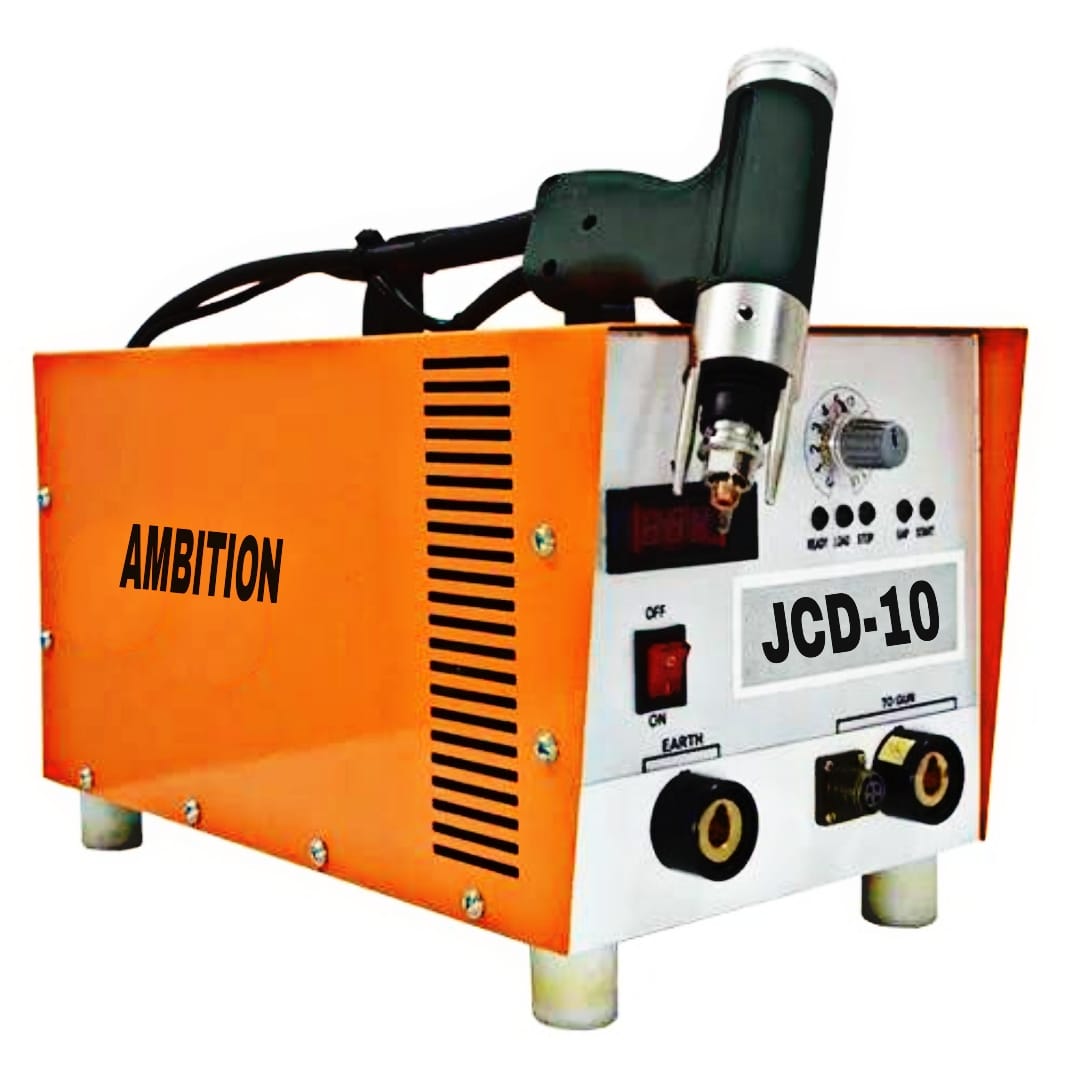

PARAMETER JCD-10
Input voltage VAC 220 + 15%
Frequency 50/60 Hz
Phase Single
Power Supply Electrolytic Capacitor
Charging Voltage 35~190 DC
Charging Capacitance 99000 uf
Rated input welding Current 11 Amps
Current 3000-9000 Amps
Discharge Time 0.001 – 0.003 sec

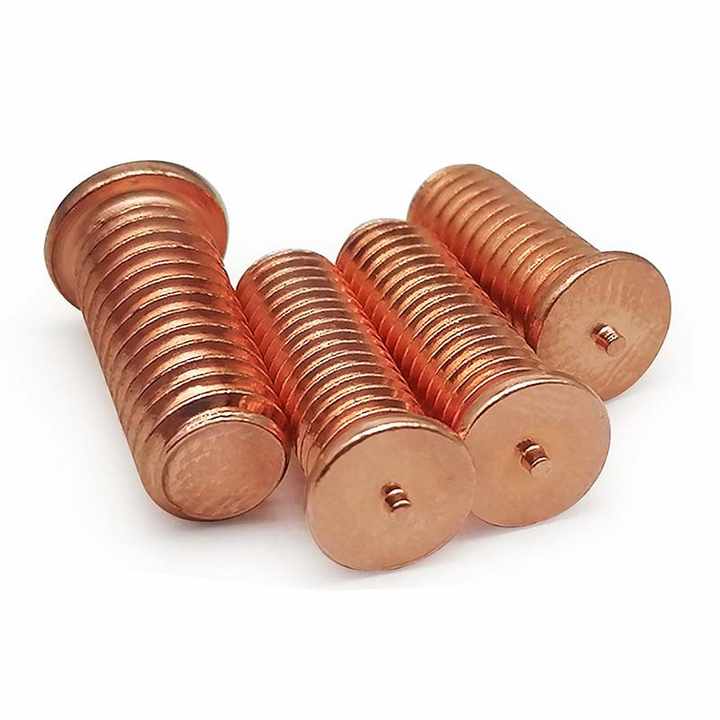

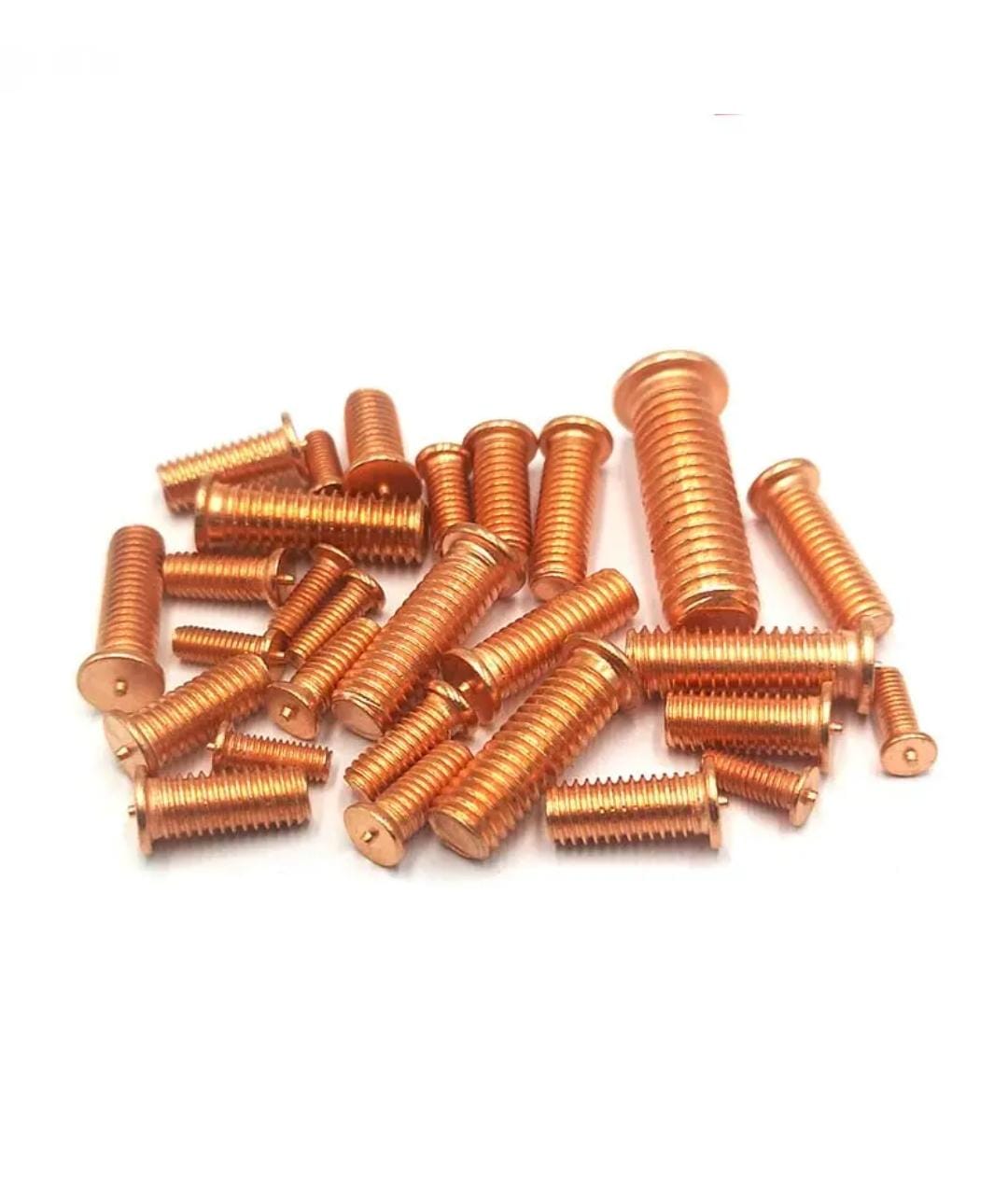

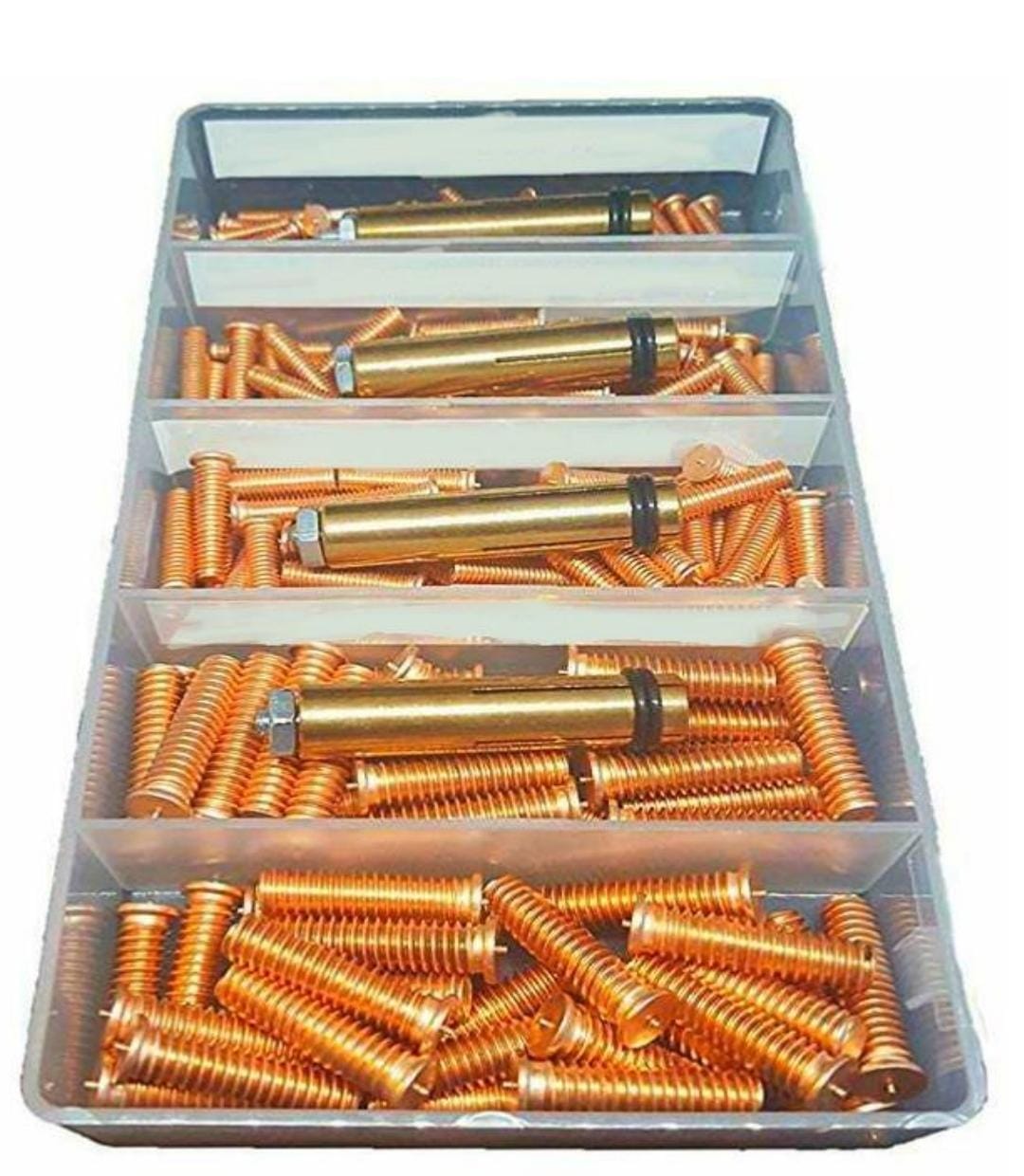

Stud welding range M2-M10
Welding Speed 10-25 pcs/ min
Material M.S , S.S , Aluminium , Brass
Cooling Air
Dimension(L*W*H) 250*275*375
Weight 18 kg
