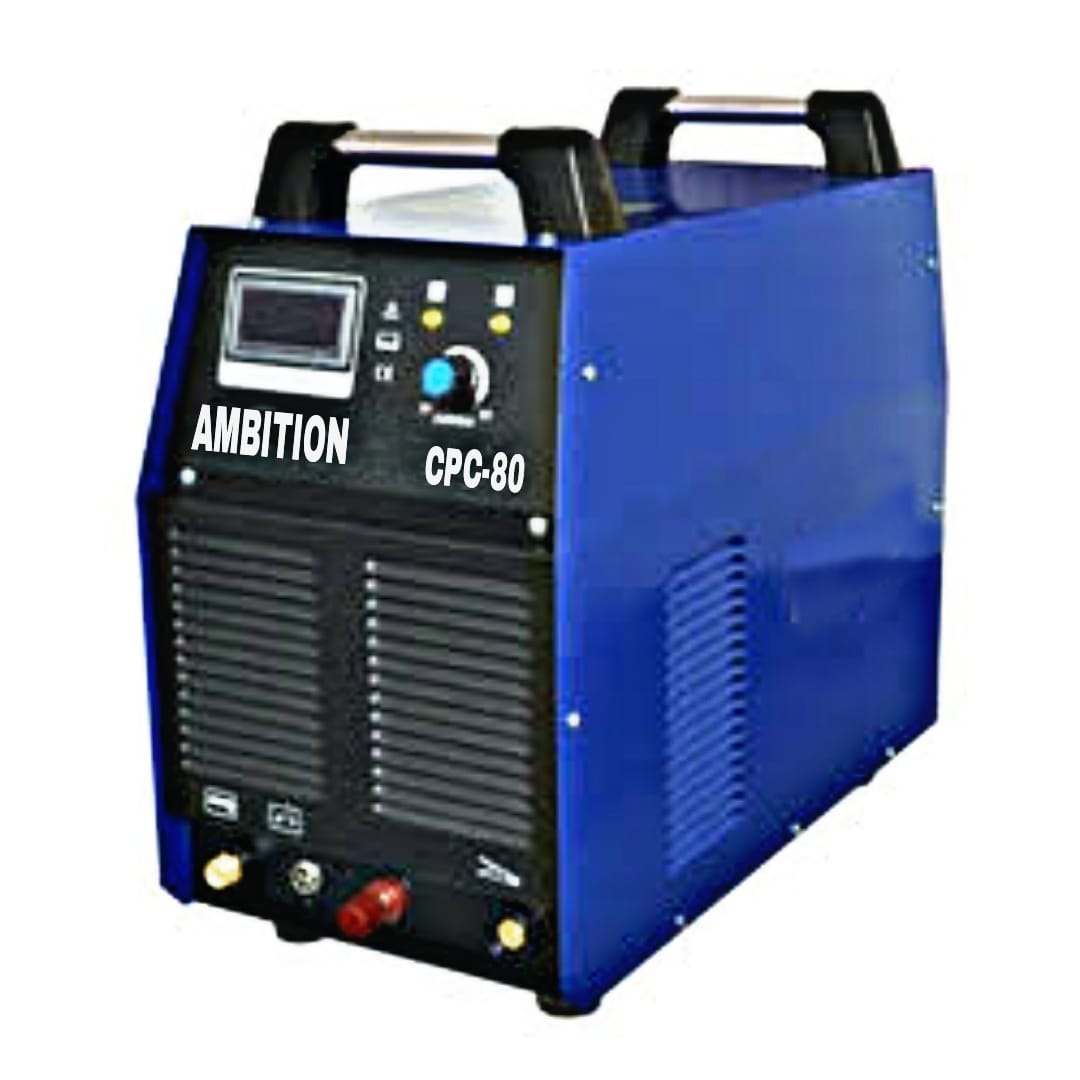

JPC80, Plasma Cutting Machine - Ambition Weld Industries

+91-9319418507

Plot No 1331, Faridabad, Haryana

Mon - Sat: 8.00AM - 06.00PM

←→

Portable Small Size Cutting Machine
Thick metal plate can be cut easily and quickly
Stale output small cutting tension and defornation
Simply operation ,smooth cutting edge and high cutting precision
Mosfet power switch and advanced inverter technology design ,60%high duty cycle

Features
Technical Specification

Features	➢ More precise cut, thinner kerf, less slag to clean up ➢ Pilot arc starting increases cutting capability and cutting speed, improving the service life of the torch kit. ➢ Operation safety protection against over-voltage, low-voltage, over-current and over-heated. ➢ Reliable, Powerful cutting Machine for professional industrial usage ➢ Anti-fluctuation of power supply ➢ Simple operation, smooth precise cutting
Catalog	https://www.ambitionweld.com/wp-content/uploads/2023/03/JPC-80.pdf

Features

➢ More precise cut, thinner kerf, less slag to clean up
➢ Pilot arc starting increases cutting capability and cutting speed, improving the service life of the torch kit.
➢ Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
➢ Reliable, Powerful cutting Machine for professional industrial usage
➢ Anti-fluctuation of power supply
➢ Simple operation, smooth precise cutting

Catalog

https://www.ambitionweld.com/wp-content/uploads/2023/03/JPC-80.pdf

PARAMETER	UNIT	Model JPC-80
Input Voltage	V	AC 415 + 15%
Frequency	Hz	50/60
Phase		Three
Max.power draw	KVA	9
Current range	A	20-80
Operating voltage	V	270
Rated duty cycle	%	60
Efficiency	%	85
Degree of protection	class	IP21S
Insulation grade		H(155°C)
Effective Cutting Thickness	mm	16
Max cuttng Thickness	mm	20
Weight gas clooled	Kg	19
Dimension LWH	mm	520x 267x 420
