Sale!

₹49,750.00

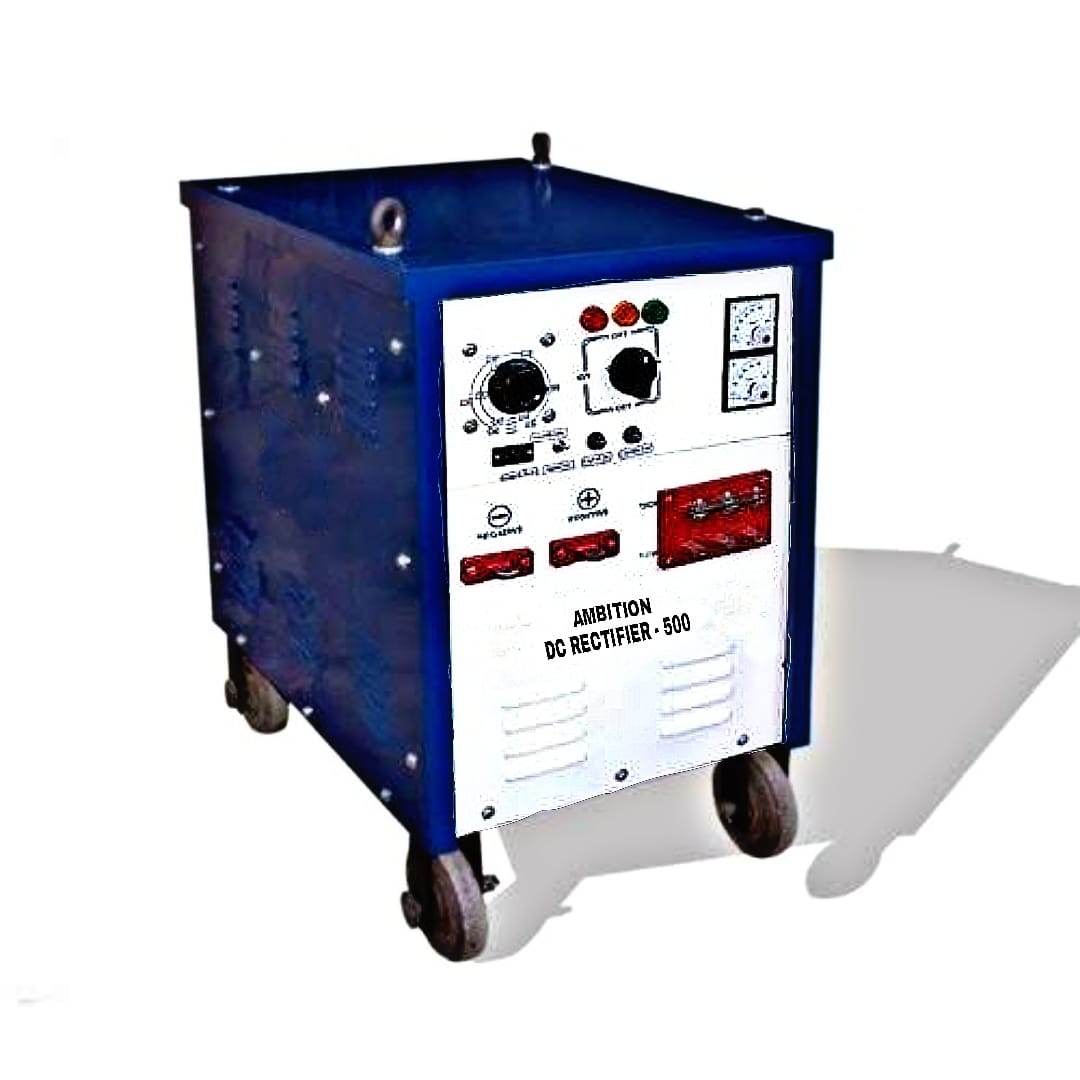

Diode Based Welding Rectifier with an efficient electrical design are for round the clock welding applications. The use of full wave silicon control rectifier gives excellent welding characteristics

Features

➢ Widely used in construction & Manufacturing company.
➢ Machine is mounted on a four wheeled trolley type stand for easy moving anywhere.
➢ The winding is a disc structure , which has a good ventilation effect & fast heat dissipation.
➢ Featuring larger fan cooled transformer with infinitely variable output control,arc ideal use in maintenance and industrial applications.
➢ Have high open circuit voltage and can deal with a various of special electrodes,such as low hydrogen and wear facing
➢ Perfect open circuit voltage giving good strike properties
➢ Low Maintenance Three Phase Silicon Rectifier insures a stable D.C. output
➢ Suitable for welding low carbon steel, low alloy steel and high strength steel.
➢ welding in a dirty & dusty environmental Possible.
Catalog

https://www.ambitionweld.com/wp-content/uploads/2023/04/JRF-600.pdf
Model: UNIT JRF-300 JRF-400 JRF-500 JRF-600
Input Supply V 380/440 380/440 380/440 380/440
Phase 3 3 3 3
Frequency Hz 50 50 50 50
Welding Current A 30 – 300 40 – 400 50 – 500 60 – 600
Welding Current at 60% Duty Cycle A 300 400 500 600
Welding Current at 100% Duty Cycle A 230 310 385 460
Current control Stepless Stepless Stepless Stepless
Open Circuit Voltage V 70 – 80 70 – 80 70 – 80 70 – 80
Max. Power KVA 22 30 38 45
Primary Current A 32 40 53 64
Cable Section (Cu) mm sq. 10 10 16 16
Cooling Type Forced Air Forced Air Forced Air Forced Air
Insulation Class: H H H H
Approximate Net Weight Kg 330 375 410 425
Approximate Machine Dimensions mm 700 x 590 x 750 720 x 610 x 1000 750 x 660 x 1070 785 x 685 x 1100
