₹245,850.00

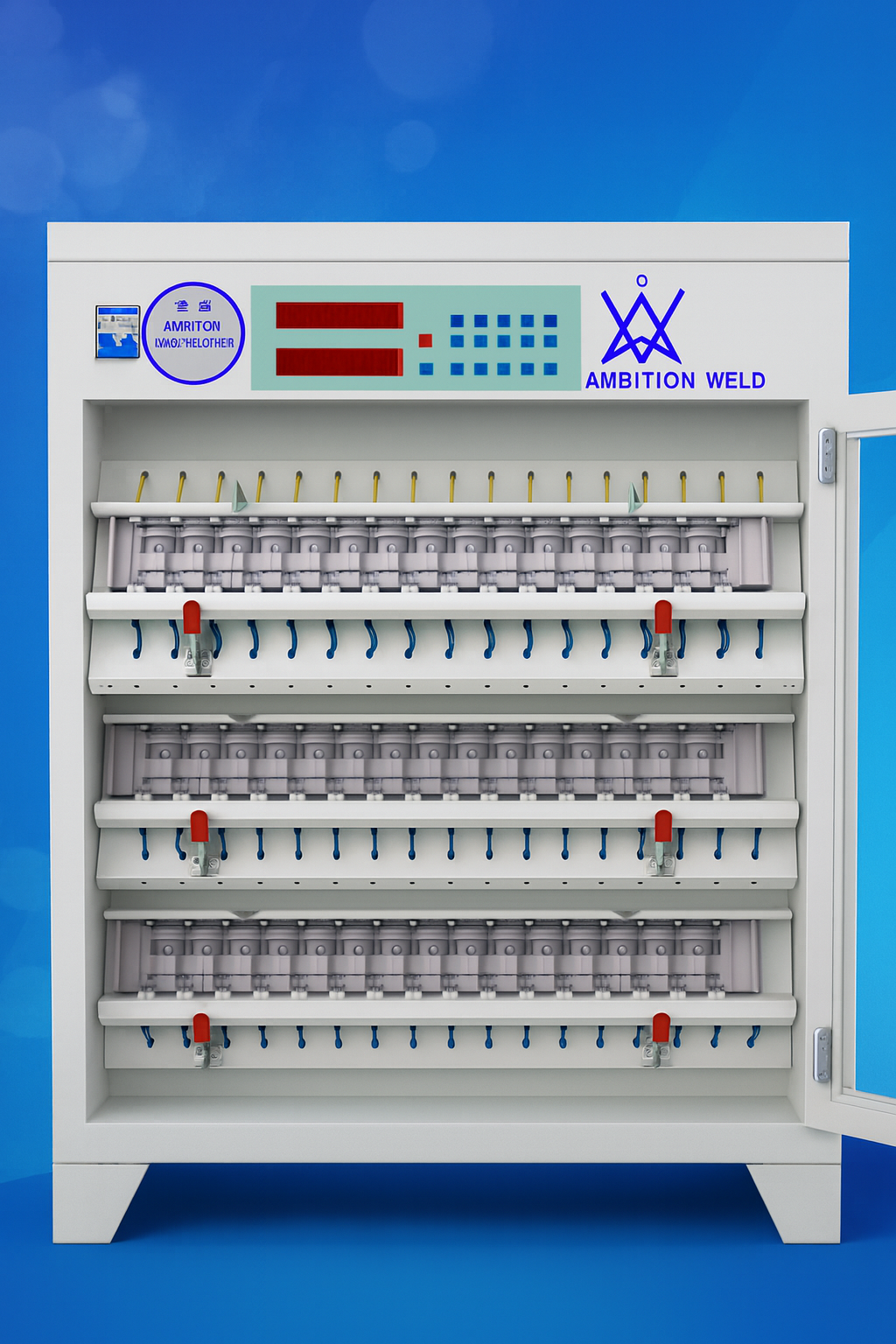

A “128 channel” and 3 AMP cell grinding machine is actually a 128-channel lithium-ion cell grading machine that tests and sorts individual battery cells simultaneously. These machines are used for quality and testing process. This machine is good for Lithiim Ion battery testing process.
Technical Parameters
Number of equipment channels 128 channels (Full screen control)
Sampling inspection interval ≤ 8s / week
Constant current range 0.05 ~ 3000mA, resolution 1mA
Current measurement accuracy ±0.1%FS
Accuracy of sampling current ±0.1%FS
Voltage measurement range 0 ~ 5V, resolution 1mV
Voltage measurement accuracy ±0.1%FS
Charge and discharge voltage range Charging: 0 ~ 4.5V, discharging: 4.5 ~ 2V (The length of external wiring shall not exceed 2.5m)
Constant voltage setting range 3 ~4.5V
Constant voltage setting accuracy ±0.1%FS
Time frame 0 ~ 30000 min / work step, accuracy: ± 0.1%
Heat dissipation mode Air cooling,updraft
Fixture form Cylindrical conventional clamp, manual polymer unclamping, tray type quick clamping cylinder, motor polymer unclamping.
Working ring source Temperature: 0 ~ 40 ºC, relative temperature ≤ 85% (No water vapor condensation)
Overall dimension Manual: 1430(L)*500(W)*1840(H)mm
Others: 1600(L)*550(W)*1840(H)mm
Working power supply Three phase four wire system, AC380V ± 10%, 50Hz
Full load power consumption ≤11KW
